IW Series Support






Overview

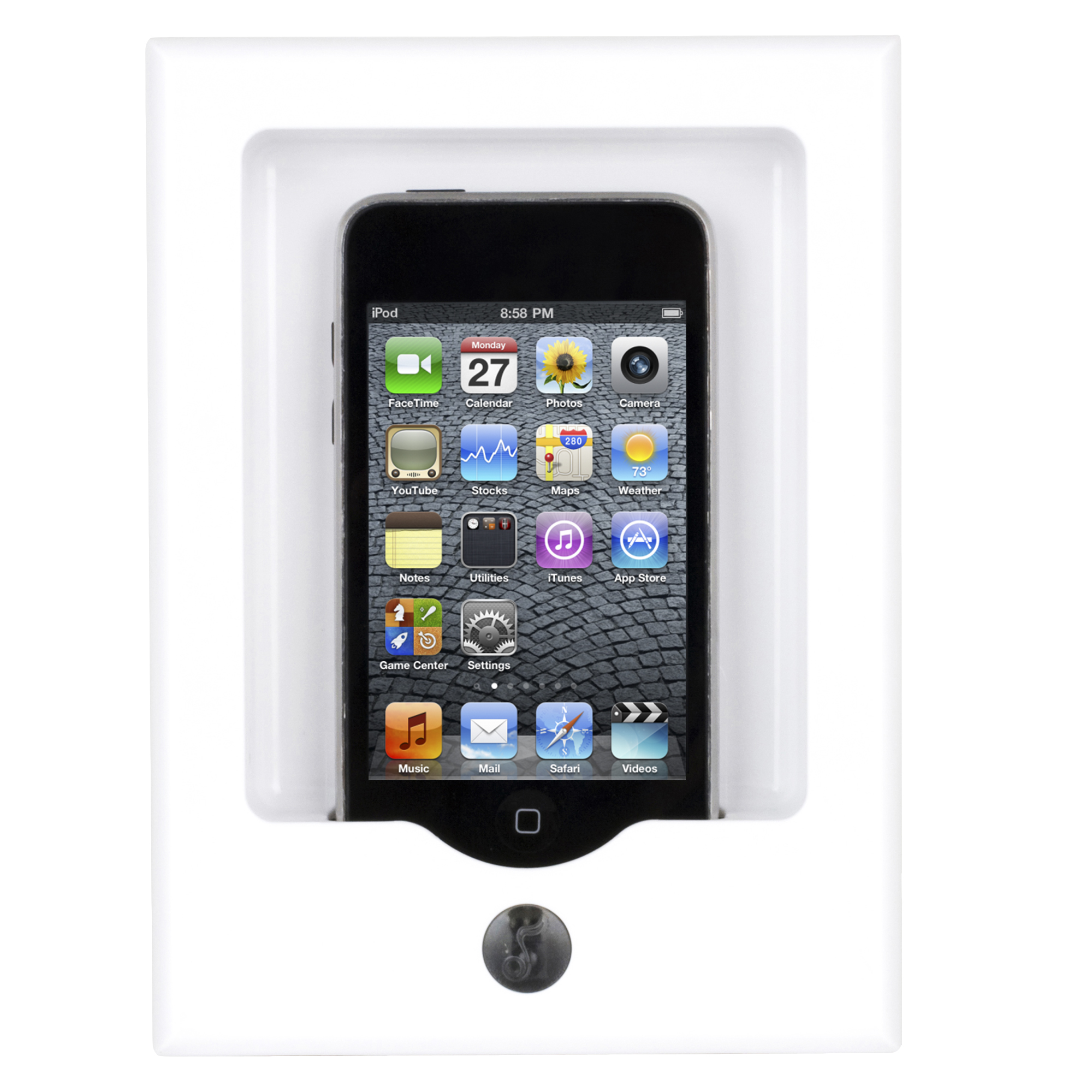

iPort IW-2 Series is a suite of in-wall iPod docks that integrate iOS mobile devices with audio visual systems.  The iPort IW-2 Series consists of three models:



IW-20 - iPod Charger, Audio Output

IW-21 - IW-20 Features Plus IR Control

IW-22 - IW-21 Features Plus RS-232 Control & Video Out



Product Diagram


IW Diagram 1.png


Replacement Parts


iPort 15V 2A Power Supply
30.00
Color:
Quantity:
Add To Cart



Resources


Compare Products
LaunchPort Charge Case & Stand Control Mount
Charging Wireless Inductive Charging Wireless Conductive Charging Wired Conductive Charging
Mount Type Magnetic, Temporary On-Wall and Tabletop Magnetic, Temporary Tabletop Semi-Permananet In-Wall
Mount Portrait or Landscape? Yes Yes Yes
Protection Up to 6 ft drop Up to 3 ft drop N/A
Color Options Soft Touch Black, High Gloss White Soft Touch Black Flat, Paint-ready white
Security Solution? Yes. Optional Security Pack locks 2 halves of iPad Sleeve together and tethers Sleeve to a fixture. No Yes. Included Tether may be used with security screws for theft deterrance.
Optional, Programmable Hard Buttons? Yes: LaunchPort Sleeve Buttons No No
Key Applications Temporary Wall Mount, Table-top mount Table-top Mount, BOYD Solution for Businesses In-Wall Mount, Digital Signage Solution
Minimum System Requirements 1 Charging Station with power supply, 1 iPad Sleeve 1 Charge Stand with power supply, 1 iPad Charge Case 1 Mounting assembly and fascia, 1 wall box with power supply and DC low voltage conversion electronics
Mounting Angles N/A 3 Differenct Orientations N/A
Mounting Orientations Portrait or Landscape Portrait or Landscape Portrait or Landscape
Access to Apple lightning port while case is on? No Yes N/A
System Price From $339 From $159 From $329

VoltPort® Technology


iPort's VoltPort technology, onboard every Control Mount, provides the greatest flexibility in how iPads can be powered when installed:

  • Power iPads from power supplies between 12-24V DC: use 16 AWG Wire up to 400 Ft. from power supply using a 24V DC power supply.
  • Power multiple iPads from 1 industrial power supply, typically a 13.8V DC high wattage supply. In an example where a 200W, 13.8V power supply is used, up to 16 iPads in Control Mounts may be powered from one supply.
  • VoltPort electronics provide a green "OK LED" which confirms iPad will be adequately powered.  Great for "bench testing" combinations of wire type, wire distance and power supply.
