Charge Case & Stand Trouble Shooting Guide

Here are some tips to use when troubleshooting a Charge Case & Stand system that is not powering iPad correctly

1.  Ensure that the Lightning Module (at the bottom of the case) is fully inserted into the iPad.

2.  Ensure that the Charge Case is seated properly onto the Charge Stand.  The Charge Stand's magnets should auto-align the Case onto he stand so that the electrical pins on the stand align with the pads on the Charge Case.  If the iPad is not being charged, try nudging the Charge Case a bit until charging occurs.

3.  Ensure that the Charge Stand is fully plugged into the wall and that you are using the correct electrical connector for your world region (if using 230V version).

4.  If 1-3 look good but still no luck, inspect the charge pins on the Charge Stand to see if they have been damaged at all.  If they are not fully deployed, they might not make an electrical connection with pads on the case.

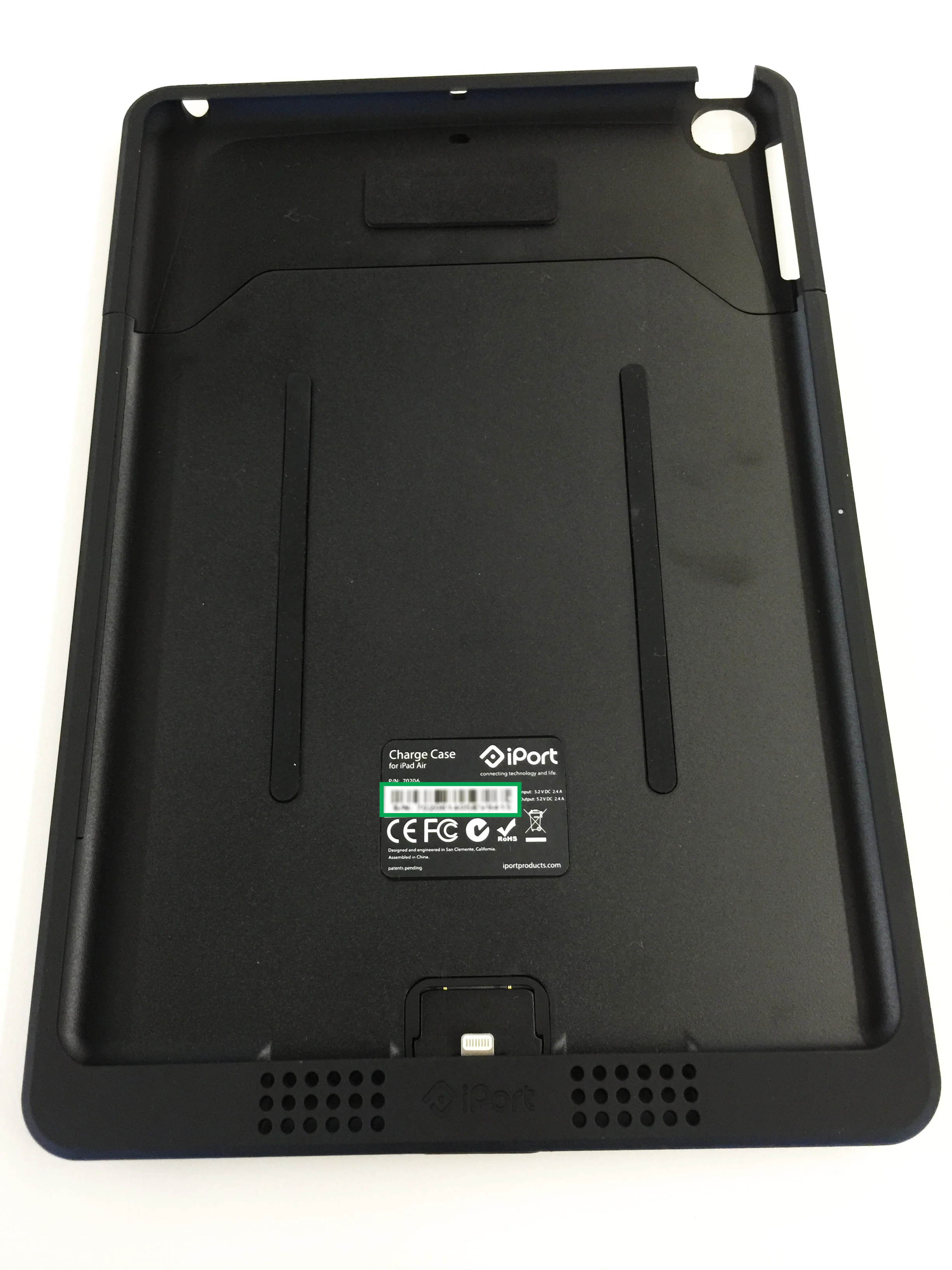

5.  If 4 looks good, inspect the pads on the back of the Charge Case to ensure there is no material that is obstructing the pads to make a solid electrical connection with the pins on the Charge Stand.

6.  If all of the above look good, then you may have a unit that is just not working.  Please submit a support inquiry and we'll take care of you.

Comment

Comment

Control Mount Trouble Shooting Guide

Here are some tips to use when trouble shooting a Control Mount that is not powering iPad correctly



1.     The +15 volt DC Power Supply (PS) is not plugged into a functional AC outlet or may have an internal problem. Measure the DC voltage output of the PS with a multi-meter (if available). If the reading is zero or close to zero volts DC, replace the PS. This happens very rarely, but is possible. Also, double-check the AC outlet to ensure the GFI protection has not tripped. If it has, reset the outlet and check/measure the voltage down the line again.

2.     The 2-conductor wire used between the Power Wall Plate and the Control Mount maybe reversed at some point with the +15 volt wire connected to the Ground terminal.  Double-check the wire polarity on both 2-terminal Phoenix connectors’ on the Control Mount USB Electronics Board and the Power Wall Plate. If you have a multi-meter, measure the voltage on the 2-terminal Phoenix connectors’ on the USB Electronics Board and/or the Power Wall Plate. If you read -15 volts instead of +15 volts, reverse the wire polarity at one end and see if charging commences.

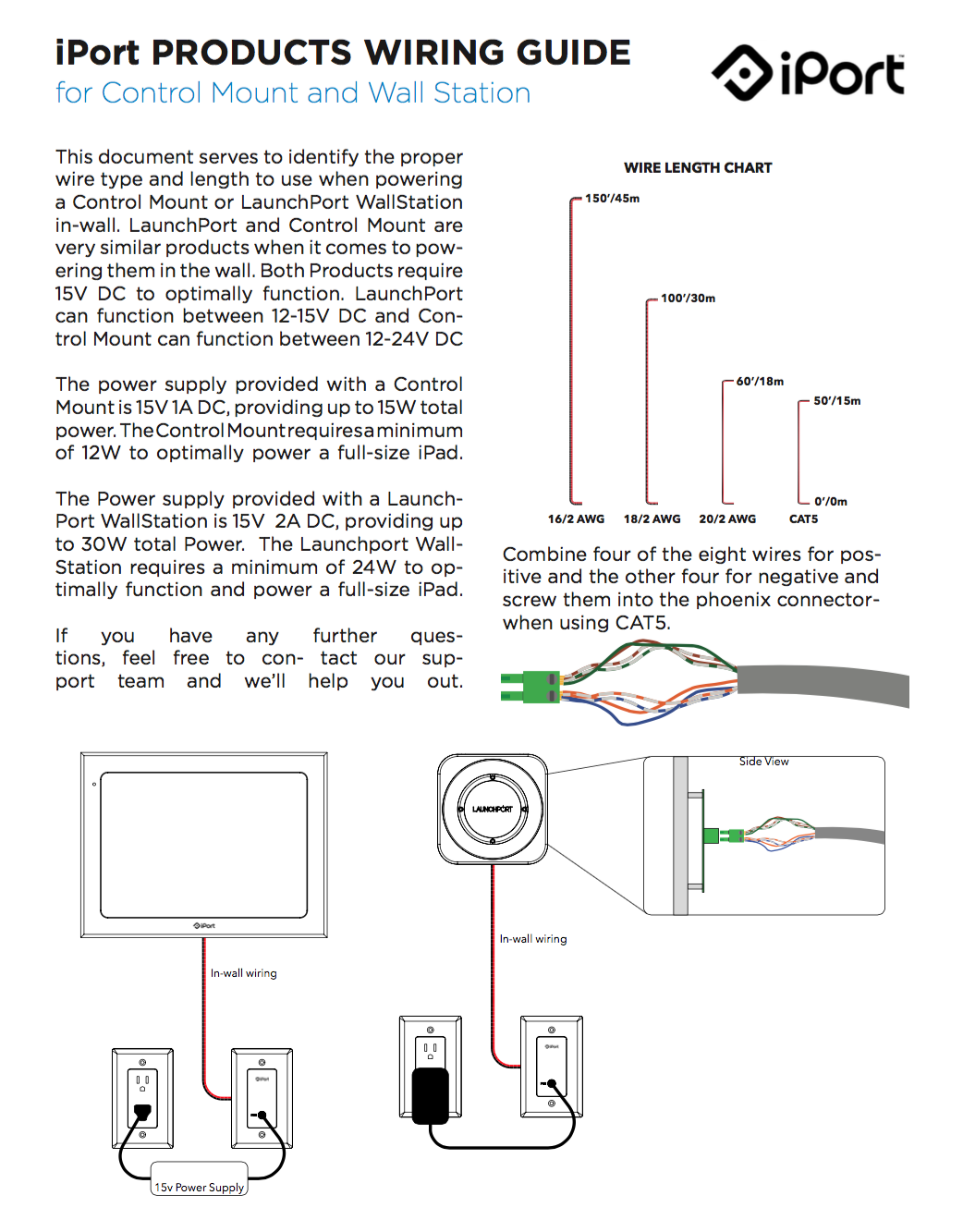

3.     The wire used between the Control Mount and its Power Wall Plate is too long or not the proper gauge to ensure charging. 14/2 speaker wire is good to 200 feet (60m), 16/2 is good to 150 feet (45m), 18/2 is good to 100 feet (30m), 20/2 is good to 50 feet (15m). If using CAT5 or CAT6, twist two pairs together for +15v and the other 2 pairs for ground. This will allow distances up to 100 feet (30m).

4.     The USB Electronics Board in the CM housing assembly has a fault. If you have a multi-meter, measure for +15 volts across the 2-terminal Phoenix connector. If you measure + 15 across the terminals, then see if the power indicator LED on the circuit board is lit. If it is, then charging should commence. If the LED does not light, then the board may have a fault and should be replaced

5.     If the iPad was recently updated through iTunes, cycle power by holding down Power Button for 10 seconds, wait a few seconds and then push the Power Button again. Once it boots up, re-install it in the CM system and see if the charge indictor on the iPad lights. If the iPad still won’t charge, try a different iPad (if you have one available). If you are unsuccessful in troubleshooting the system, then you can certainly send it to us for service. If the green LED does not light, then the required charging voltage is not making it to the Wall Station. Troubleshoot back up the line through to the Power Wall Plate and/or +15 power supply. Measure the PS directly. If the PS reads +15 volts, check the wire connections and polarity as explained previously.

6.     If you follow the Installation Instructions and the preceding troubleshooting steps and the iPad won’t charge, relocate the CM housing to the location of the Power Wall Plate and PS. Connect the system together with a short 2-conductor wire and see if charging commences. If it does, you may have a wire problem somewhere in the system. Measure the wire for open and shorted conditions; pull new wire if possible.

Comment

Comment

LaunchPort Trouble Shooting Guide

Here are some tips to use when troubleshooting LaunchPort product that is not powering iPad correctly:

1.     The +15 volt DC Power Supply (PS) is not plugged into a functional AC outlet or may have an internal problem. Measure the DC voltage output of the PS with a multi-meter (if available). If the reading is zero or close to zero volts DC, replace the PS. This happens very rarely, but is possible. Also, double-check the AC outlet to ensure the GFI protection has not tripped. If it has, reset the outlet and check/measure the voltage down the line again.

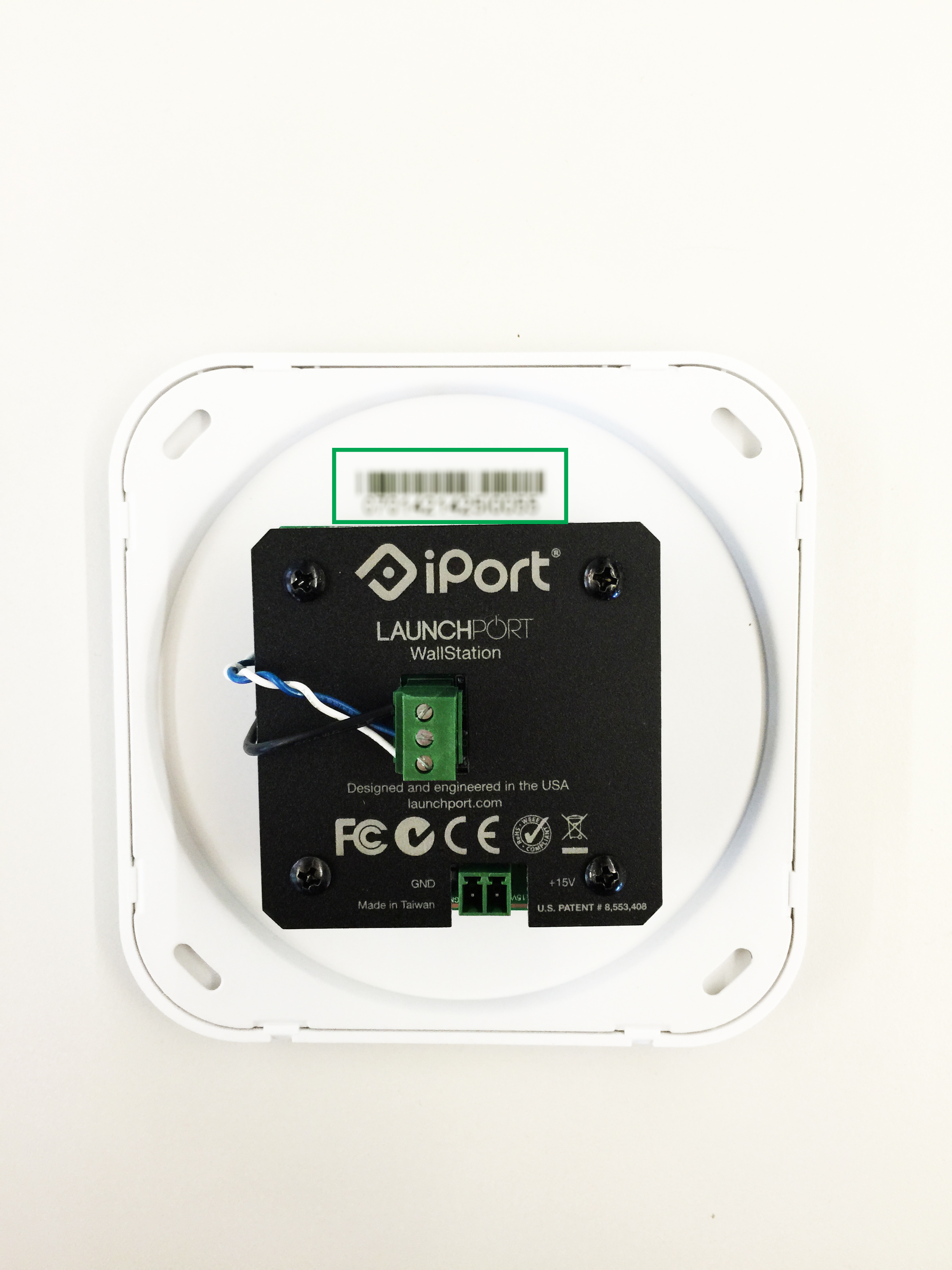

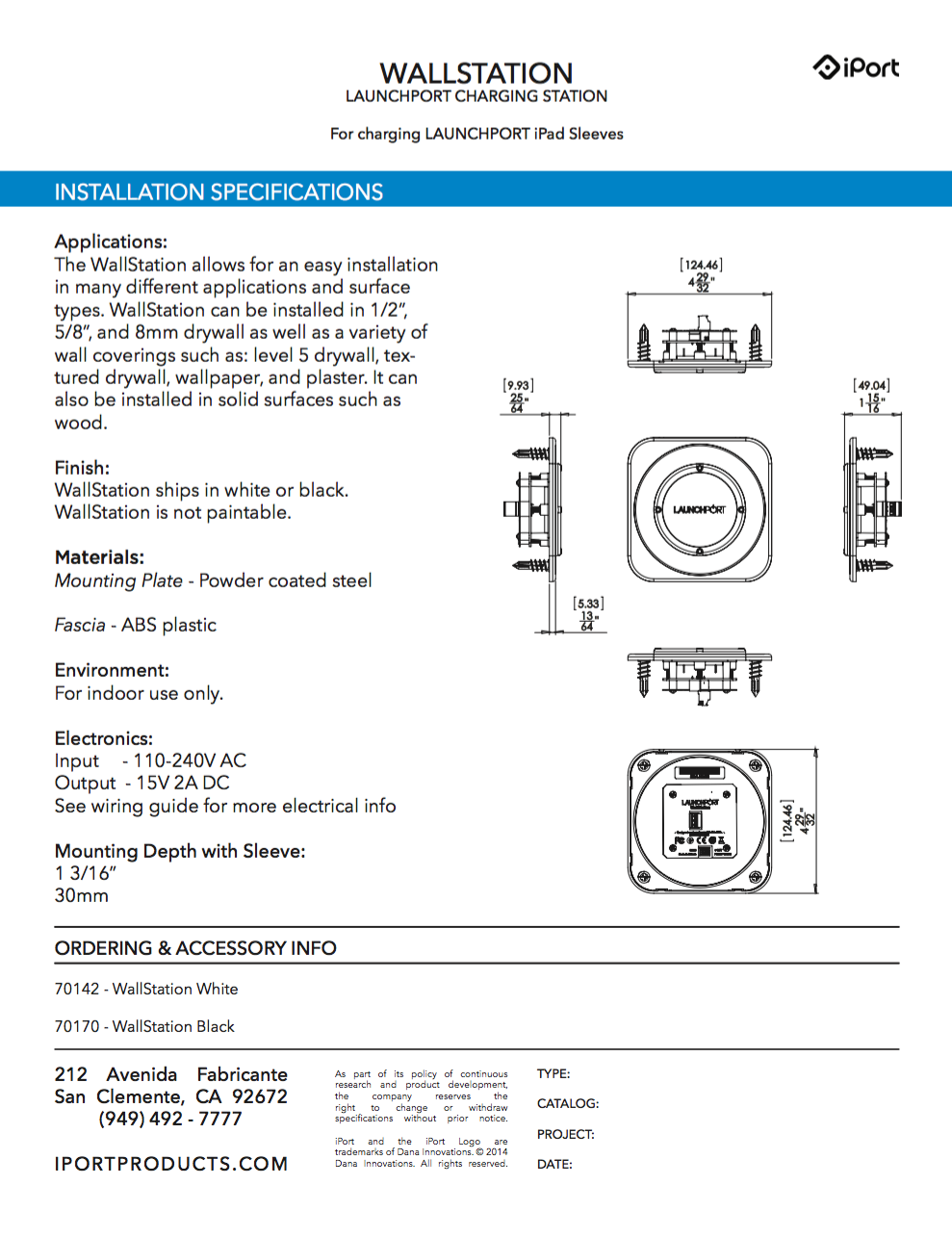

2.     The 2-conductor wire used between the Power Wall Plate and the Wall Station maybe reversed at some point with the +15 volt wire connected to the Ground terminal.  Double-check the wire polarity at both the backside of the Wall Station and the Power Wall Plate. If you have a multi-meter, measure the voltage on the 2-terminal Phoenix connector on the backside of the Wall Station. If you read -15 volts instead of +15 volts, reverse the wire polarity, then re-dock the Sleeve and see if charging commences.

3.     The wire used to extend the PS to the Wall Station is too long and/or not the proper gauge to ensure charging. 14/2 speaker wire is good to 200 feet (60m), 16/2 is good to 150 feet (45m), 18/2 is good to 100 feet (30m), 20/2 is good to 50 feet (15m). If using CAT5 or CAT6, twist the two pairs together for +15v and the other 2 pairs for ground. This will allow distances up to 100 feet (30m).

4.     The Wall Station may have an internal fault. If possible, try your Sleeve on a different Wall Station or Base Station to see if the iPad charging symbol lights. If the iPad/Sleeve does charge on a different Station, remove the Wall Station from the wall. If you have a multi-meter, measure for +15 volts across the 2-terminal Phoenix connector on the PCB (printed circuit board). If you measure + 15 across the terminals, look inside the stacked PCBs to see if the green LED on the board is blinking. If it is, dock the Sleeve and iPad on the Station. There is a yellow LED that should light and stay solid with the Sleeve on the Station. Does the yellow LED light? If it does and yet the iPad still won’t charge, the Wall Station should be returned for service. If the green LED does not light, then the required charging voltage is not making it to the Wall Station. Troubleshoot back up the line through to the Power Wall Plate and/or +15 power supply. Measure the PS directly. If the PS reads +15 volts, check the wire connections and polarity as explained previously.

5.     The Wall Station works but the Sleeve has an issue. Try your iPad/Sleeve on a different Wall Station proven to function normally. If it does not charge, then you have an issue with the Sleeve; arrange for service or replace the Sleeve.

6.     The Sleeve/iPad charges for a few seconds and then stops. If I undock the Sleeve from the Station, put it back on the station and have to rotate to initiate charging, then the Sleeve has an issue and should be replaced.

Comment

Compare Products
LaunchPort Charge Case & Stand Control Mount
Charging Wireless Inductive Charging Wireless Conductive Charging Wired Conductive Charging
Mount Type Magnetic, Temporary On-Wall and Tabletop Magnetic, Temporary Tabletop Semi-Permananet In-Wall
Mount Portrait or Landscape? Yes Yes Yes
Protection Up to 6 ft drop Up to 3 ft drop N/A
Color Options Soft Touch Black, High Gloss White Soft Touch Black Flat, Paint-ready white
Security Solution? Yes. Optional Security Pack locks 2 halves of iPad Sleeve together and tethers Sleeve to a fixture. No Yes. Included Tether may be used with security screws for theft deterrance.

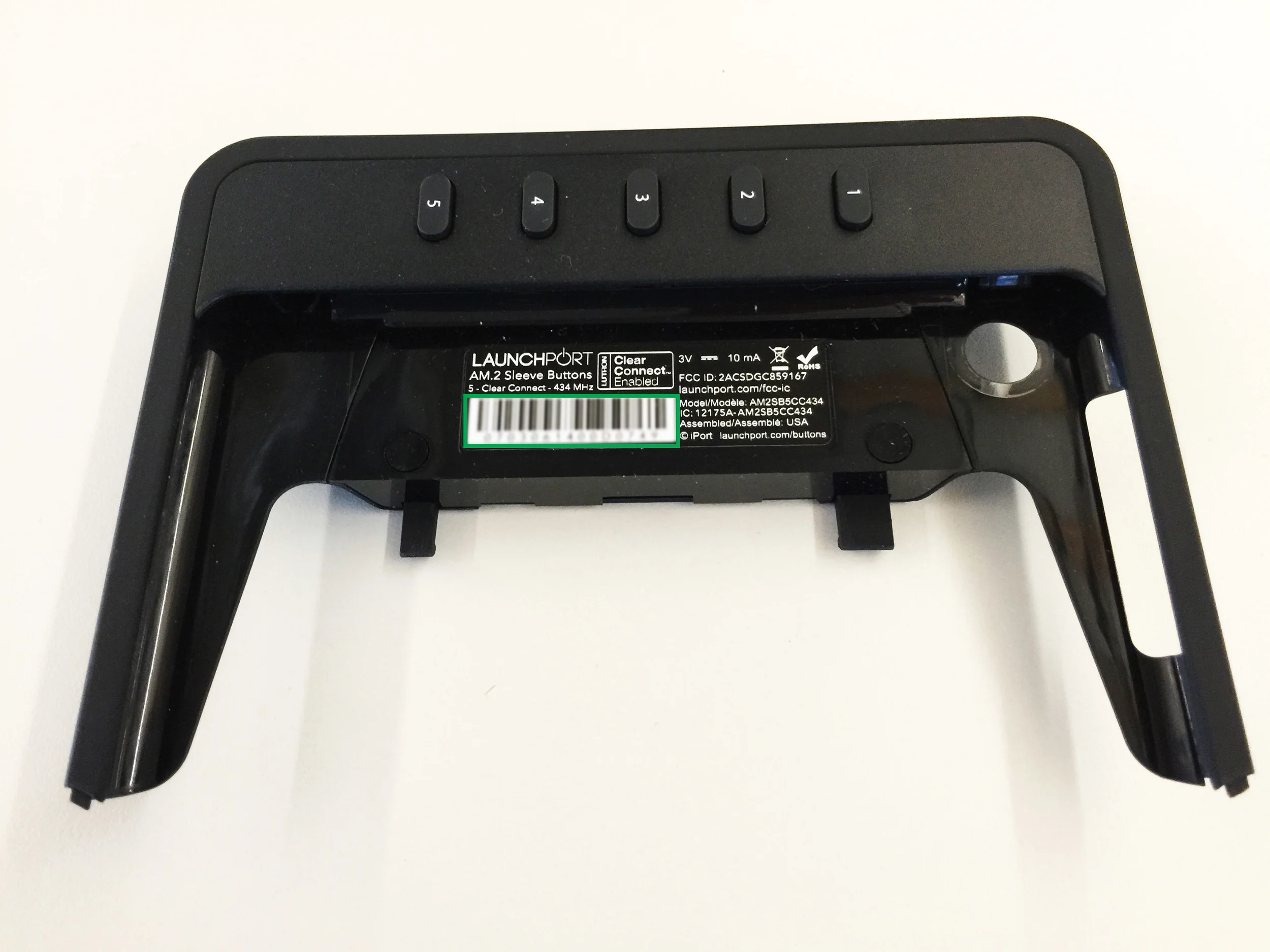

Optional, Programmable Hard Buttons? Yes: LaunchPort Sleeve Buttons No No
Key Applications Temporary Wall Mount, Table-top mount Table-top Mount, BOYD Solution for Businesses In-Wall Mount, Digital Signage Solution
Minimum System Requirements 1 Charging Station with power supply, 1 iPad Sleeve 1 Charge Stand with power supply, 1 iPad Charge Case 1 Mounting assembly and fascia, 1 wall box with power supply and DC low voltage conversion electronics
Mounting Angles N/A 3 Differenct Orientations N/A
Mounting Orientations Portrait or Landscape Portrait or Landscape Portrait or Landscape
Access to Apple lightning port while case is on? No Yes N/A
System Price From $339 From $159 From $329

VoltPort® Technology


iPort's VoltPort technology, onboard every Control Mount, provides the greatest flexibility in how iPads can be powered when installed:

  • Power iPads from power supplies between 12-24V DC: use 16 AWG Wire up to 400 Ft. from power supply using a 24V DC power supply.
  • Power multiple iPads from 1 industrial power supply, typically a 13.8V DC high wattage supply. In an example where a 200W, 13.8V power supply is used, up to 16 iPads in Control Mounts may be powered from one supply.
  • VoltPort electronics provide a green "OK LED" which confirms iPad will be adequately powered.  Great for "bench testing" combinations of wire type, wire distance and power supply.
