Surface Mount with Buttons Support


SM Buttons Black_4U3A7532.jpg

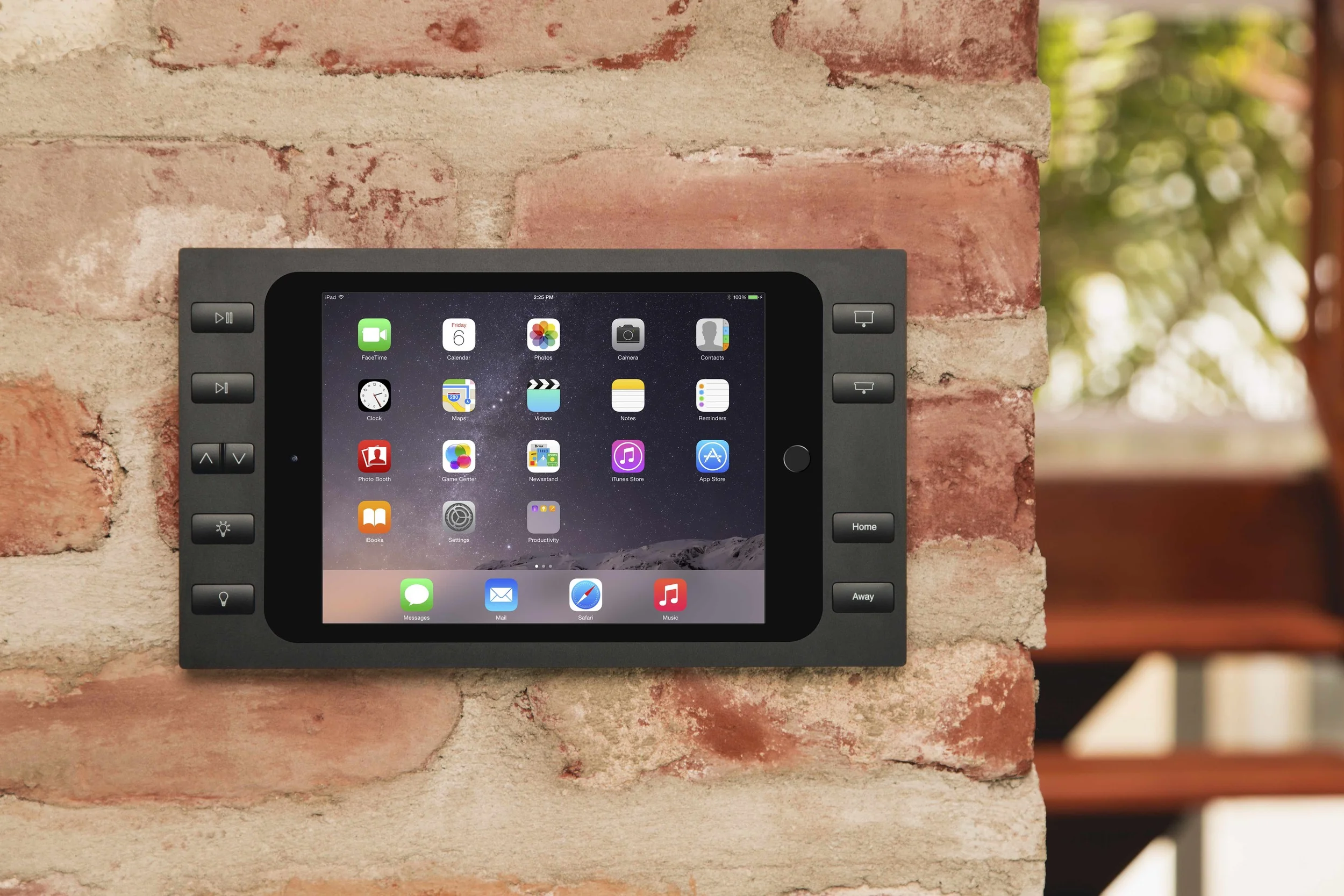

Surface Mount with Buttons combines an on-wall iPad Mount & Charger with an IP keypad that can be configured to send commands to nearly any control system.  Buttons are LED backlit and embedded in the bezel.  The bezel connects to the iPort PoE Splitter (70718) to connect to LAN networks via a CAT 5e or CAT6 cable.

The device is powered via PoE as well as the iPad using the iPort PoE Splitter.

Use the resources below to learn more about installation and more.



Dimensions

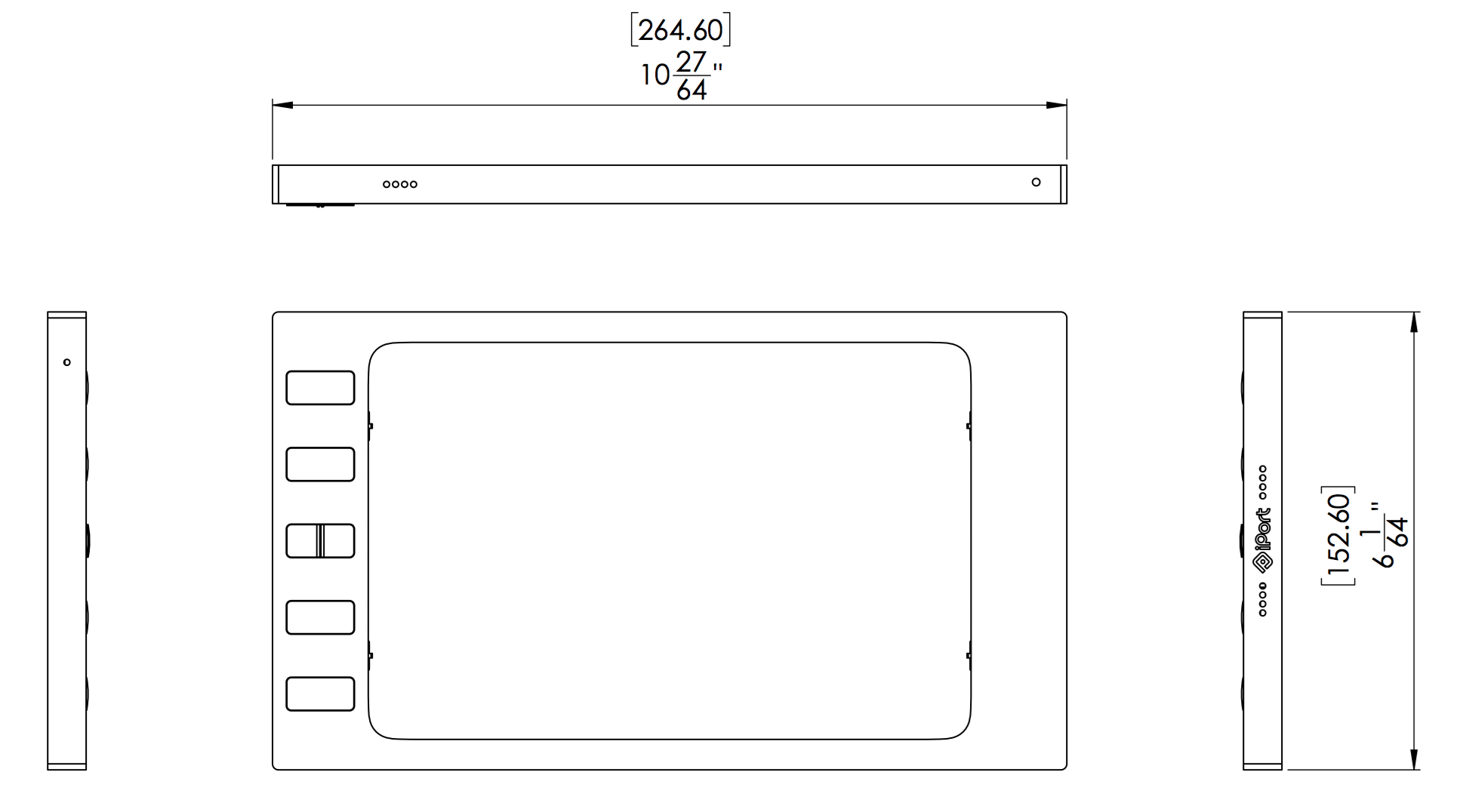

Surface Mount Buttons mini 4 Bezel Dimensions

SMB Mini 4 Dims.png

Surface Mount Buttons Air 1 | 2 | Pro 9.7" Bezel Dimensions

SMB Air Dims.png



Resources


CAD Files

Surface Mount Buttons for iPad mini 4 Bezel

DWG |  DXF  |  PDF

Mounting Bracket for iPad mini 4 Bezel   PDF



Surface Mount Buttons iPad Air 1 | 2 | Pro 9.7" Bezel

DWG  |  DXF  |  PDF

Mounting Bracket for iPad Air 1 | 2 | Pro 9.7" Bezel     PDF



Surface Mount Buttons for iPad Pro 12.9"

(bezel for power only and buttons are same size)

DWG  |  DXF  |  PDF

Mounting Bracket for iPad Pro 12.9"     PDF

Compare Products
LaunchPort Charge Case & Stand Control Mount
Charging Wireless Inductive Charging Wireless Conductive Charging Wired Conductive Charging
Mount Type Magnetic, Temporary On-Wall and Tabletop Magnetic, Temporary Tabletop Semi-Permananet In-Wall
Mount Portrait or Landscape? Yes Yes Yes
Protection Up to 6 ft drop Up to 3 ft drop N/A
Color Options Soft Touch Black, High Gloss White Soft Touch Black Flat, Paint-ready white
Security Solution? Yes. Optional Security Pack locks 2 halves of iPad Sleeve together and tethers Sleeve to a fixture. No Yes. Included Tether may be used with security screws for theft deterrance.
Optional, Programmable Hard Buttons? Yes: LaunchPort Sleeve Buttons No No
Key Applications Temporary Wall Mount, Table-top mount Table-top Mount, BOYD Solution for Businesses In-Wall Mount, Digital Signage Solution
Minimum System Requirements 1 Charging Station with power supply, 1 iPad Sleeve 1 Charge Stand with power supply, 1 iPad Charge Case 1 Mounting assembly and fascia, 1 wall box with power supply and DC low voltage conversion electronics
Mounting Angles N/A 3 Differenct Orientations N/A
Mounting Orientations Portrait or Landscape Portrait or Landscape Portrait or Landscape
Access to Apple lightning port while case is on? No Yes N/A
System Price From $339 From $159 From $329

VoltPort® Technology


iPort's VoltPort technology, onboard every Control Mount, provides the greatest flexibility in how iPads can be powered when installed:

  • Power iPads from power supplies between 12-24V DC: use 16 AWG Wire up to 400 Ft. from power supply using a 24V DC power supply.
  • Power multiple iPads from 1 industrial power supply, typically a 13.8V DC high wattage supply. In an example where a 200W, 13.8V power supply is used, up to 16 iPads in Control Mounts may be powered from one supply.
  • VoltPort electronics provide a green "OK LED" which confirms iPad will be adequately powered.  Great for "bench testing" combinations of wire type, wire distance and power supply.
